Introduction
Published in 2023, heat pipes represent a proven thermal management solution for today¿s electronic and industrial applications. The performance of a heat pipe, however essentially relies on the inner wick structure.
The wick responsible for controlling both capillary action and working fluid circulation. For this reason, manufacturers require precision machines to manufacture high-quality wick structures.
This is where a Heat Pipe Powder Filling Machine comes into play. It precisely fills copper powder into heat pipe tubes before sintering.
Automated powder filling technology also provides better production efficiency, minimal material wastage and more uniform thermal performance.
Nanjing Bangwin Machine designs and manufactures state of the art heat pipe making machinery & complete turn-key production solutions for thermal product manufacturers around the world.
Heat Pipe Powder Filling Machine: What is it?
Heat Pipe Powder Filling Machine is a dedicated copter or other wick materials filling machine for Heat pipe tubes.
The internal wicking structure of the heat pipe in its manufacturing helps percolate forces via capillary. This forces calls the working fluid to pass through parts of evaporation and condensation.
The powder filling process is directly dependent on:
- Wick density
- Porosity
- Capillary performance
- Heat transfer efficiency
- Product reliability
Hence, precision powder filling is reformed as critical manufacturing steps.
A typical machine performs:
- Tube positioning
- Powder measurement
- Automatic filling
- Vibration compaction
- Filling inspection
The Importance of Powder Filling in the Fabrication of Heat Pipes
An excellent wick structure will accelerate the heat transport in a heat pipe.
Thus, they need to tightly monitor powder filling parameters.
Important factors include:
Powder Quantity
The powder volume which is incorrectly filled has a good influence on the thickness of the wick.
Filling Density
Density influences liquid circulation.
Powder Distribution
Uniform distribution improves thermal performance.
Production Consistency
Stable filling improves product quality.
Manufacturers need to fulfil these requirements with a reliable Heat Pipe Powder Filling Machine.
Working Principle of Heat Pipe Powder Filling Machine
A state of the art powder filling system follows multiple steps
Step 1: Tube Loading
Operators or automatic feeders insert copper tubes into the machine.
Step 2: Tube Positioning
The machine accurately repairs every single one of these tubes.
This prevents filling errors.
Step 3: Powder Measurement
It weighs an exact amount of copper powder.
Sensors control filling accuracy.
Step 4: Powder Injection
The tube is filled with powder from the machine.
The filling speed remains stable.
Step 5: Powder Compaction
Which powder due to vibration or mechanical functioning.
Step 6: Inspection
The system checks filling quality.
Good tubes proceed to the next stage of production.
Key Elements of the Powder Filling Equipment
The Heat Pipe Powder Filling Machine consists of many major systems.
Powder Storage System
Stores copper powder safely.
Measuring System
Controls powder quantity precisely.
Filling Nozzle
Transfers powder into the tube.
Tube Positioning System
Maintains accurate tube placement.
Vibration System
Improves powder density.
Control System
The complete process is done by PLC control.
Safety System
Protects operators and prevents contamination.
Heat Pipe Powder Filling Process
The powder filling step links up with other heat pipe processing equipment.
The complete workflow includes:
Tube Preparation
Cutting and cleaning of Copper tubes
Powder Filling
THE MACHINE INJECTS TUBES WITH COPPER POWDER.
Heat Pipe Powder Filling Machine
Sintering
Then the filled tubes enter a furnace.
The copper powder creates a porous wick structure.
Vacuum Processing
The vacuum is treated on the heat pipe.

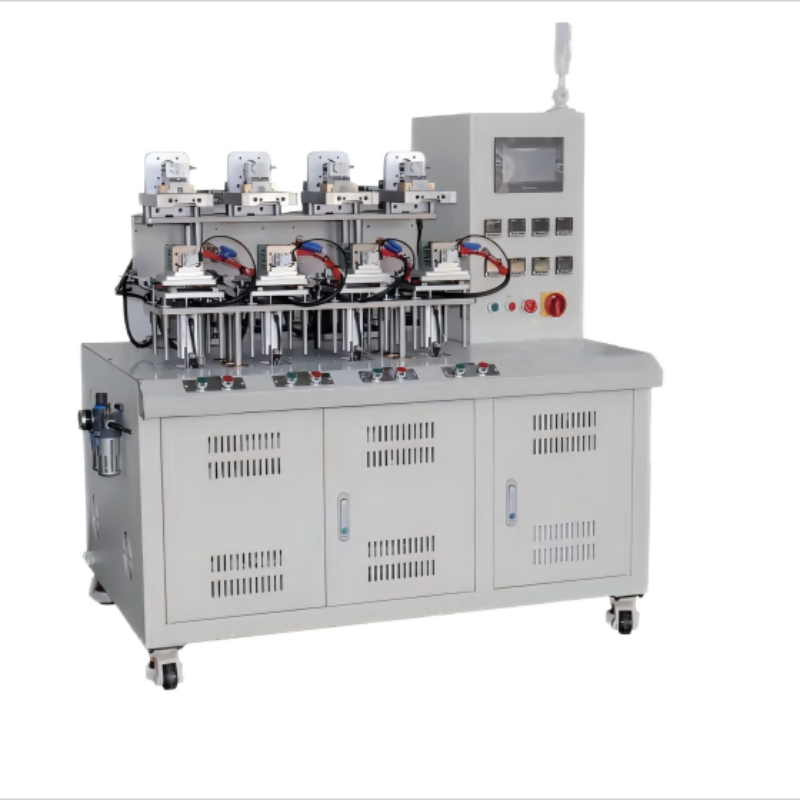

Copper Heat Pipe Vacuum Degassing Machine
Fluid Injection
Heat pipe entering working fluid.
Automatic Water Injection Machine
Sealing and Welding
The heat pipe is permanently blocked.
Automatic welder
Benefits of Automatic Powder Filling Machine
Advantages of Automatic Heat Pipe Powder Filling Machine
High Filling Accuracy
Automatic control maintains a constant powder volume.
Improved Production Speed
Multiple tubes can process continuously.
Reduced Material Waste
Precise measurement reduces powder consumption.
Better Product Quality
There are some uniform wick structures for the heat transfer improvement.
Lower Labor Requirements
Automation reduces manual operation.
Easy Integration
The machine integrates into full production lines.
As a result, automatic powder filling equipment is an indispensable tool in modern heat pipe plants.
Applications in Heat Pipe Manufacturing
There are various kinds of heat pipe powder filling machines for multiple industries.
Consumer Electronics
Used for:
- Laptop cooling systems
- Smartphone thermal solutions
- Gaming devices
AI Servers
Used for:
- GPU cooling
- Data center thermal management
Electric Vehicles
Used for:
- Battery cooling systems
- Power module cooling
Telecommunications
Used for:
- Communication equipment
- Network hardware
Aerospace
Used for:
- Satellite thermal control
- Aerospace electronics
Guide to Selecting the Appropriate Powder Filling Machine
Manufacturers should assess multiple factors before acquiring equipment.
Tube Size Compatibility
During this make certain to confirm tube diameters and lengths that are supported.
Filling Accuracy
Select Equipment with Accurate Measurement Systems
Automation Level
Options include:
- Semi-automatic machines
- Fully automatic machines
Production Capacity
Choose Equipment Based on Output Requirements
Integration Capability
Ensure compatibility with:
- Heat Pipe Manufacturing Line
- Heat Pipe Production Line
- Automatic Heat Pipe Production Line
Supplier Experience
Select a supplier that has both engineering and service capabilities.
Why Choose Nanjing Bangwin Machine
Nanjing Bangwin Machine is a service provider of heat pipe manufacturing equipment and automation.
Official website:
Nanjing Bangwin Machine Official Website
Our product solutions include:
- Heat Pipe Powder Filling Machine
- Heat Pipe Manufacturing Line
- Automatic Heat Pipe Production Line
- Heat Pipe Making Machine
- Heat Pipe Production Line
- Vapor Chamber Manufacturing Production Line
- Copper Heat Pipe Vacuum Degassing Machine
- Automatic Water Injection Machine
- Copper Tube End Closing Machine
- Automatic Welding Machine
- Sintering Furnace
Also, we supply nonstandard equipmentas per customer producing date.
Our services include:
- Production line design
- Equipment manufacturing
- Installation support
- Technical training
- After-sales service
This allows manufacturers to construct high efficiency and reliability heat pipe production systems.
Home
FAQ
- What is a Heat Pipe Powder Filling Machine?
A Heat Pipe Powder Filling Machine is equipment used to accurately fill copper powder into heat pipe tubes to create wick structures.
- Why is powder filling important for heat pipes?
Powder filling determines wick density, capillary performance, and thermal efficiency.
- What powder does a heat pipe powder filling machine use?
Most heat pipe manufacturers use copper powder because it provides excellent thermal conductivity and compatibility with copper tubes.
- Can the powder filling machine work with automatic production lines?
Yes. Modern machines integrate with complete automatic heat pipe production lines.
- What industries need powder filling machines?
Electronics, AI servers, EVs, aerospace, telecommunications, and industrial cooling industries use this equipment.
- Where can I buy a heat pipe powder filling machine?
You can find complete solutions from Nanjing Bangwin Machine Official Website.
Conclusion
Heat Pipe Powder Filling Machine A part of the new production of modern heat pipes. This enables high-fidelity and consistent copper powder filling for the basis of advanced wick architectures.
As demand rises for such high-performance cooling solutions, automated powder filling technology supports manufacturers through enhanced operating efficiencies, lower waste levels and consistent product quality.
Nanjing Bangwin Machine is a professional manufacturer of complete heat pipe manufacturing equipment and other customized thermal manufacturing. Graduated from Jiangsu University in 2013, found the power filling system, an automatic production line to offer a complete solution for your heat pipes.
