Space-Saving Flexible Metal Hose Machine for Production

1. Introduction

Globally, there is increasing demand for flexible metal hoses.

Manufacturers are required to design more concise machines to fill that demand.

A Space-Saving Flexible Metal Hose Machine enables factories to maximize productivity, reducing the required factory floor space.

Additionally, sophisticated modern factories are focused on automation and efficiency.

Compact manufacturing systems are more appreciated as a result.

Hose manufacturers combine this type of equipment with related Tube Processing Machine systems to form fully integrated production lines.

Automated fabrication solutions are often paired with HVAC Manufacturing Equipment to meet the industrial ventilation and fluid transfer requirements.

Sophisticated factories incorporate Heat Transfer Manufacturing Equipment for cooling and thermal management systems.

Nanjing Bangwin Machine designs and manufactures highly productive and reliable hose manufacturing equipment.

2. What Is a Space-Saving Flexible Metal Hose Machine

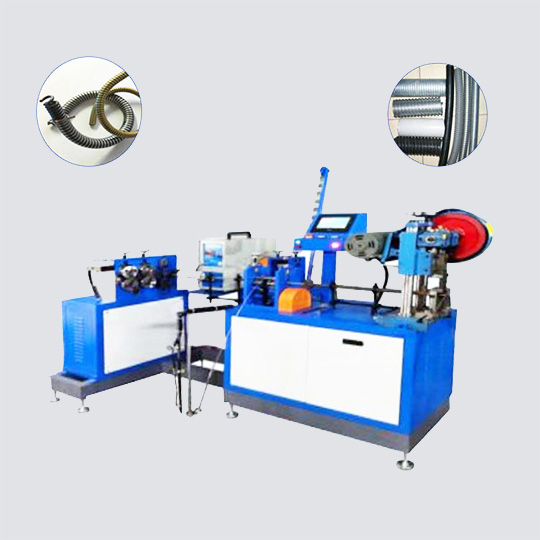

A Space-Saving Flexible Metal Hose Machine is used to produce corrugated and flexible metal hoses.

These hoses can be made with either stainless steel or metal strips.

Unlike traditional systems that require a large footprint, this type of machine is smaller.

Manufacturers are able to install this machine in facilities with limited floor space.

This machine can also produce a large quantity of finished goods in a short amount of time and also accurately forms goods to design specifications.

3. How the Machine Works

The production process is divided into clear steps that follow a continuous workflow. These steps include:

• – Metal strip feeding
• – Tube forming
• – Seam welding
• – Corrugation forming
• – Diameter calibration
• – Cutting and finishing
• – Quality inspection

Automation of each step results in consistent production quality.

4. Main Components

• Metal Strip Feeding System
• Continuously supplies the material.
• Tube Forming Unit
• Forms metal strips into tubes.
• High-Frequency Welding System
• Fuses seams together permanently and uniformly.
• Corrugation Forming Machine
• Develops profiles of hose with flexibility.
• Calibration Unit
• Checks dimensions.
• PLC Control System

Oversees and manages the entire production process.

All these form a Space-Saving Flexible Metal Hose Machine.

5. Flexible Metal Hose Manufacturing Process

The process consists of a number of sections.

• Preparation of Material

Stainless steel strips are placed in the feeding system.

• Tube Formation

Strips are formed into tubes.

• Seam Welding

Welded joints are formed.

• Corrugation Process

Flexible corrugation is formed.

• Calibration and Cutting

The hose is trimmed to length.

Final inspection is done to check quality.

Reliable and consistent production is accomplished.

6. Key Features

• Save Space
• Uses less area in the factory.
• Less Manual Work
• Reduced manual work.
• Welding Quality is Improved
• Increases reliability of the end product.
• Excellent Flexibility Corrugation
• Highly flexible.
• Very Easy to Maintain
• Simplifies daily maintenance.
• Flexible Production

Can produce a range of different sized hoses.

7. Technical Specifications

8. Advantages

The Space-Saving Flexible Metal Hose Machine is an outstanding option for manufacturers.

Efficiently utilizes valuable factory space

Advanced designs improve productivity

Decrease labor costs

Provides a consistent quality product

Facilitates uninterrupted production

Increases operational flexibility

Reduces waste

Improved manufacturing reliability

9. Applications

The Space-Saving Flexible Metal Hose Machine can be used in multiple manufacturing industries.

HVAC

Flexible ducts and systems of air movements.

Petrochemical

Fluid transfers.

Power Generation

Protective conduit systems.

Automotive

Fluid and exhaust systems.

Industrial

Flexible piping.

Demand for flexible metal hoses continues to grow around the world due to their inherent flexibility and durability.

10. Why Choose Nanjing Bangwin Machine

Nanjing Bangwin Machine focuses on industrial manufacturing and automation.

We provide complete production solutions for flexible hoses.

We also offer machine support, customization, installations, and after-service.

Go to our website: Nanjing Bangwin Machine

Our engineering team is dedicated to supporting manufacturers in the advancement of productivity, quality of product, and the efficiency of operations.

• • For more industrial manufacturing insights:https://bangwinmachine.com/

11. FAQ

• What types of materials can this machine process?

Most systems can process stainless and galvanized steel and some alloys.

• Is the machine appropriate for small factories?

Yes! The compact design fits perfectly for limited spaces.

• Can different hose diameters be produced?

Yes! Tooling can be configured for diameters of different sizes.

• Is the machine capable of producing in an automatic mode?

Yes! Most models provide an automatic mode of production through PLC control.

• Does Nanjing Bangwin Machine provide the entire production solution?

Yes! We offer both standalone machines and complete hose manufacturing systems.

12、Conclusion

Space-Saving Flexible Metal Hose Machines enable manufacturers to enhance productivity and optimize the use of factory space. Advanced automation systems, sophisticated metal forming, and excellent performance incorporate industrial manufacturing requirements.

For all-in hose production, they provide professional machines, tailored designs, and full technical support via the Bangwin Machine Official website.
